Excel 2007 bug shows wrong answers to simple multiplications
October 2, 2007 8 Comments
This is a follow-up post to my earlier one about a bug in the way Excel 2007 displays the results of certain calculations. Read that one first of you have not already done so.
A few people in the comments thread in the Excel team blog post about the bug seem to have some misconceptions about the seriousness of the problem. Some have asked how often it is likely to come up, implying that they think it is vanishingly unlikely. This seems to be particularly those who have misunderstood that the example of 850*77.1 is only one simple example which is easy to remember and to type, but there are several more simple ones as well as thousands of other combinations which lead to the buggy result (due to floating point rounding errors in the calculation hitting a result which is sufficiently close to 65,535 to cause the false display of 100,000). Nine examples are shown in the screenshot below, and in a table you can easily copy and paste to try this for yourself.
Nine examples of simple calculations which Excel can’t work out*
* yes, I know the underlying value in the answer is as accurate as any previous version within the limits of the floating point calculation method and it just displays wrong, but in the real world that’s just as bad.
To use the examples in the table above, select them, copy (CTRL-C), open Excel.
With cell A1 selected go to Paste Special (use the dropdown arrow on the Paste button or do ALT, E, S). Choose Text and click OK.
If you divide 65,535 by integers starting from 1, then multiply the result by the same integer, you will quickly find many instances of the display bug. For example, A7=65535/7; B7=A7*7 (I actually used the ROW() function to generate these so I could copy and paste blocks quickly). For the integers 1 to 256, you will get 30 examples, the first being 65536/13=5041.15384615385, and 13*5041.15384615385 = 100,000.
How many more examples are there?
In the first 524,280 results, there are 80,242 bugs, which is approximately 15.3%. I do not consider this many to be rare, although I accept that these are all effectively getting one of a very few values close to 65,535 which have the bug – the number of buggy values is small, but the combinations of number pairs which lead to them is quite large. The nine examples given above all have exactly the same product – 65,534.999999999993 (you can see this as the value stored if you open the XML file for that worksheet)
There are several places where as many as seven consecutive integers lead to the bug; the first sequence this long starts at 100,334, the first set of six begins at 31,745. The longest gap I found in the first half million or so cases is 1,370 between the bugs at 262,589 and 263,959.
There are some interesting patterns to the integers which cause these. For example, 13*2^n, 49*2^n, 81*2^n and many other similar chains produce the bug.
Doing a similar exercise on numbers with exactly one decimal place (1.1, 1.2 … 52429.7 but not 1.0, 2.0 etc.) there are 64,325 bug pairs, about 13.64% of results. There is a sequence of 8 numbers from 28,059.0 to 28,059.7 which all produce the problem. A few simple example pairs include 20.4 * 3,212.5, 40.8 * 1,606.25 and 212.5 * 308.4. It starts to become clearer that there are quite a lot of calculations which could occur in normal business models and give rise to the error.
Can I test my files to see if this is affecting my results?
Simon Murphy has published some code which you can use to test your files for occurrences of the bug. He also discusses how important this bug is overall, in terms of actual impact to real users – noting that the number of people who have moved to excel 2007 so far seems to be relatively small. Not zero, but the problem would have had loads more impact if it had been undiscovered for another three to six months. I have a client who are rolling out as I write, migrating several thousand users from Office 2000 to Office 2007. They generate huge management accounting spreadsheets which spit out pretty reports on the one hand, but on the other the data they generate is piped via CSV into their ERP system. So one person would have a chart or summary table with correct figures, while the back-end systems would be out by a significant margin of error. This could take a long time before anyone could have isolated the error and it’s source.
What about cases where this becomes an actual error in the value?
As previously discussed, there are several ways in which the Excel 2007 display error can become fixed as an incorrect value (of 100,000 or 100,001):
- using the ROUND function (but not ROUNDDOWN nor ROUNDUP)
- using “precision as displayed”
- exporting to CSV
- Paste Special > Values
- using the TEXT function to convert to a string
In addition, the MOD function seems to just break down altogether – it does not use the 100,000 but returns totally bogus results.
For example, MOD(850 * 77.1, n) gives -7.27596E-12 for integer values of n including 1 and 5 (which should both return 0). even MOD(65534.999999999999,1) gives a result of 0.999999999999 quite happily. Something quite odd going on with this, as MOD should never return a negative value, mathematically speaking.
So what functions work safely?

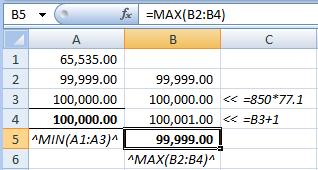

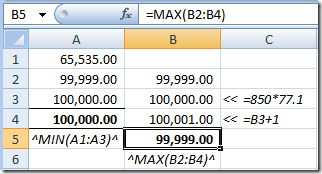

In addition to the obvious mundane arithmetical calculations, most functions seem to work just fine. The MAX and MIN functions and their cousins LARGE and SMALL work as normal, as do conditional formats including data bars and colour scales. The screenshot on the right shows how odd this may appear.
The FLOOR and INT functions seem to use the correct underlying values and not propagate the error at all. ABS does not change the value, by design (just lose the sign) so it repeats the 100,000 display bug, but still does not lock this in. ABS(-850*77.1) shows 100,000. Adding 2 to that result gives 65,537.
ROUNDDOWN and ROUNDUP both seem to happily return 65,535 as their result. Of course, as Erich Neuwirth pointed out in the Google Groups thread on the subject of the bug, in a way this should not be the case. We know that the result of 850*77.1 is not actually 65,535 but a tiny fraction under that due to floating point inaccuracies.
So that would mean that ROUNDDOWN (850 * 77.1, 0) should truncate the entire part of the number after the decimal point to give a result of 65,534. Now that would be seen as a bug, since we know that in reality 850*77.1 is actually 65,535 exactly. So there must be something in the algorithm for ROUNDDOWN which assumes if a number is close enough to a whole number, round it up to that value, treat it as an integer input and ROUND it down by precisely nothing. The same applies for ROUNDDOWN used for any number of decimal places up to 30 – it spits out 65,535 as if the inaccurate interim value never existed.
I am happy to continue saying “ROUNDDOWN is correct” in this context, since it is closer to our expectations than if every floating point error introduced were to cause whole numbers to be lost. A dollar here, a barrel of oil there, a square mile of land for someone else. This would not be acceptable, but I can accept that the number stored underneath is inaccurate to some bazillionths of a penny. Same goes for the other functions such as INT and FLOOR – they are actually giving incorrect results, but they are giving the result they should in a normal decimal universe.
Of course, if you are a nuclear physicist you don’t want Excel making these assumptions on your behalf for very small numbers, as they would be considered wrong in that context.
Don’t forget, these floating point errors have been around for a very long time. It is only a bug like this that makes people take notice what is going on “under the hood” and try to grasp the idea that their entire accounting career has been a lie, and every report they ever wrote was probably some kind of approximation. People generally fall into three camps on this:
- Blissfully unaware that their figures are inaccurate, and totally unaffected by the fact
- Aware that these errors exist in the n’th decimal place as a matter of fact, but happy to accept that this is not fatal
- Fully aware of the floating point problem, and careful to check that functions handle very-near-integers sensibly to give a result which would be expected in the real world if calculated in decimal.
Which type are you?
